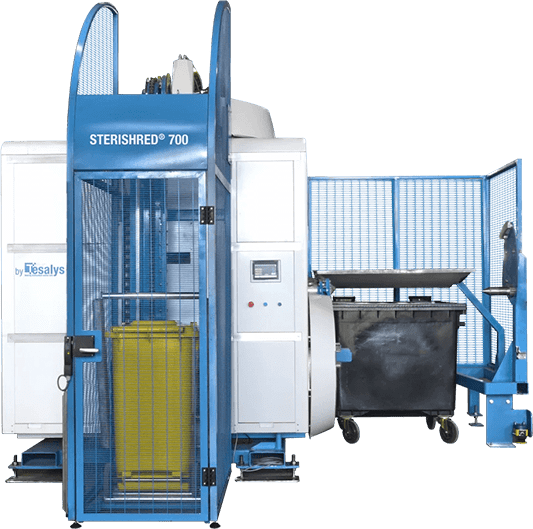

STERISHRED® 700

STERISHRED® 700 is an advanced solution to perform safe biomedical waste treatment which reduces risks, volume/weight and disposal costs. It treats infectious healthcare waste by pre-shredding followed by a non-burn thermal process (steam sterilization) at 135°C, in just minutes!

Compact but with large treatment capacity (up to 100 kg/h), it can be used for either on-site treatment or in centralized outsourcing facilities.

INTEGRATED SHREDDER- STERILIZER FOR HEALTHCARE WASTE

TOTAL CYCLE TIME Approx. 35 to 50 min depending on steam generator version and load humidity
LOADING CAPACITY (KG/CYCLE) 40 to 100 kg/cycle (Based on an average waste density of 0,08 to 0,12 kg/l)
TOTAL CYCLE TIME IN WORKING CONDITIONS (2) 30 to 50 min
TREATMENT CAPACITY (KG/H) (3) 40 to 100 kg/h (Based on an average waste density of 0,08 to 0,2 kg/l)
LOADING CHAMBER Stainless steel
TREATMENT CHAMBER 316L Stainless steel
STEAM GENERATOR Stainless steel
WATER SOFTENER Available as option (External)
WATER BOOSTER PUMP Buit-in
WASTE SHREDDER AISI 304L stainless steel (structure) Hardox® hard steel (blades)
PIPING Stainless steel/PTFE flexible hosing
CHASSIS Powder coated steel
BODYWORK Stainless steel
CYCLE TRACEABILITY Built-in printer
EXTERNAL DIMENSIONS 4000 mm x 4045 mm x 3890 mm – As an option, unit can be disassembled in three parts
(2) Cycle times may vary based on the type of materials, waste density, humidity, quantity of liquids, etc. For loads with high liquid content, cycle time can be longer. Up to 50min depending on the waste density. 3) Based on an average cycle time of 45min. (40 min. of cycle + 5 min. unloading/loading time). All the data given in this catalogue are non-binding and given as a guide only. Treatment capacities, cycle times and consumptions are given as mere examples and may vary depending on the type of waste, installation conditions, operator’s availability and skills. Consumption is calculated on the basis of a standard cycle of the machine. For consumption with cooling of the drain and / or the Virus + kit, please consult us.
WATER
NeedsWater 4-8°TH
ConsumptionApprox. 75 liters/cycle (25L machine + 50L steam generator)
ELECTRICITY
Needs380-400 V III N, 50/60 Hz, 80kW (other voltage / frequency available as option)
Consumption10 kWh / cycle
DRAIN2” Ø (heat resistant, floor level)
STEAMProduced by the integrated steam generator, no external connection required
COMPRESSED AIRBuilt-in, no external connection required



Very high treatment capacity
The STERISHRED® 700 offers an on-site treatment capacity of 40 to 100 kg/hour
Fully automated

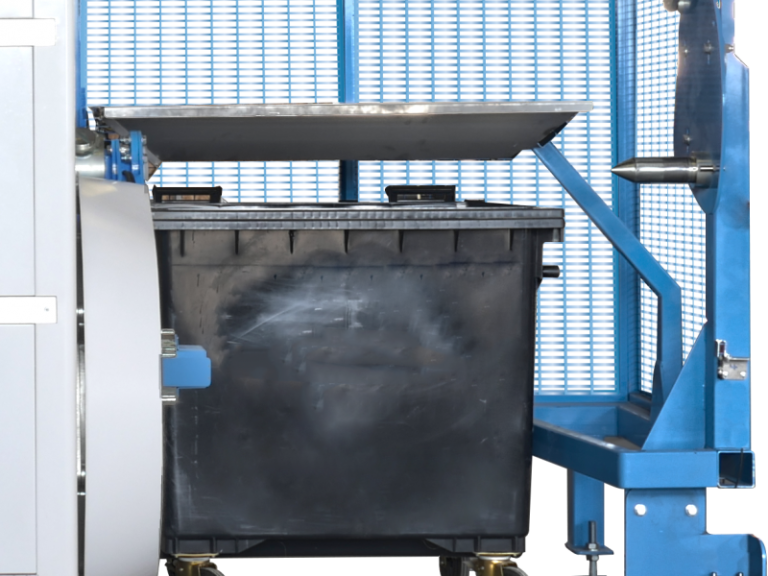

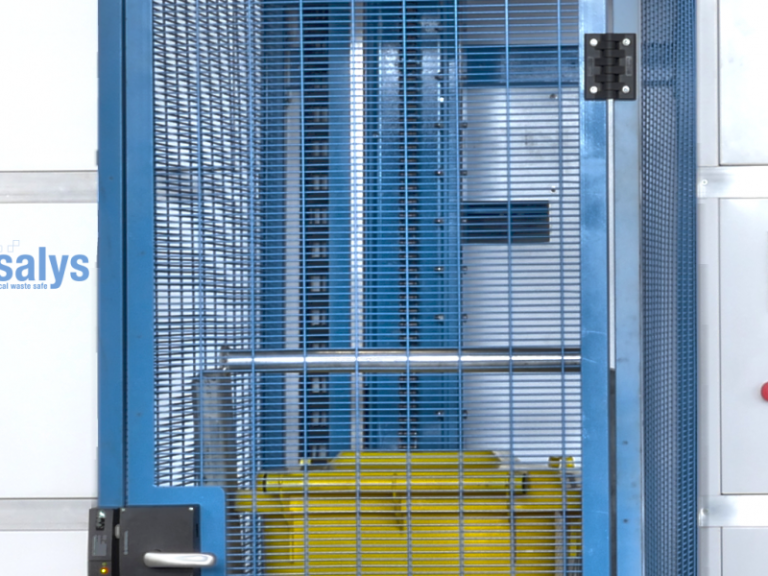

Its loading and unloading system is fully automated
For large structures
It is the ideal solution for structures producing high quantities of infectious waste and wishing to reduce their environmental impact by treating them on site
